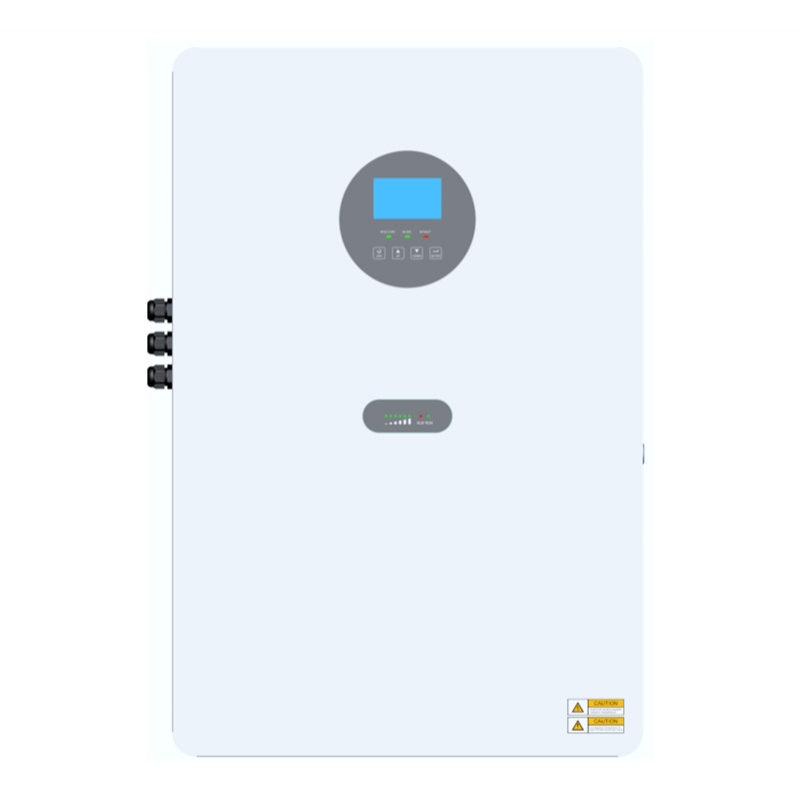

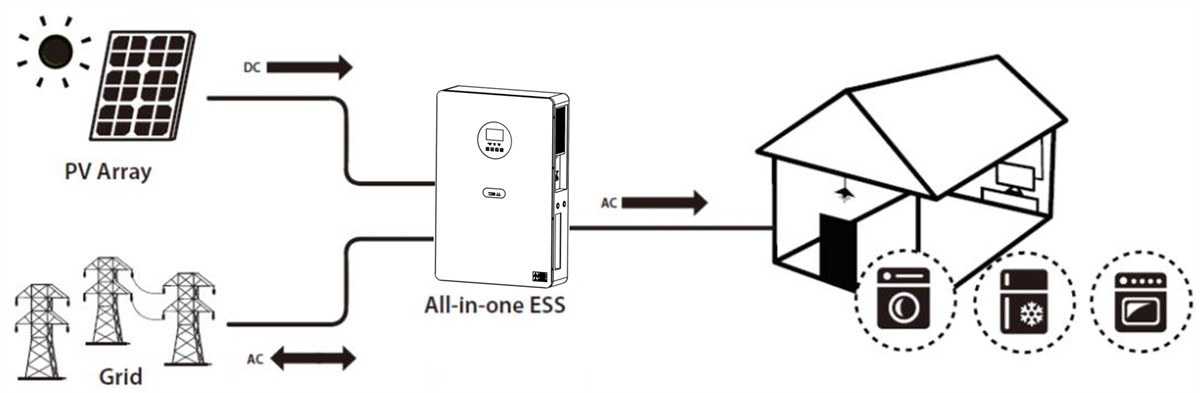

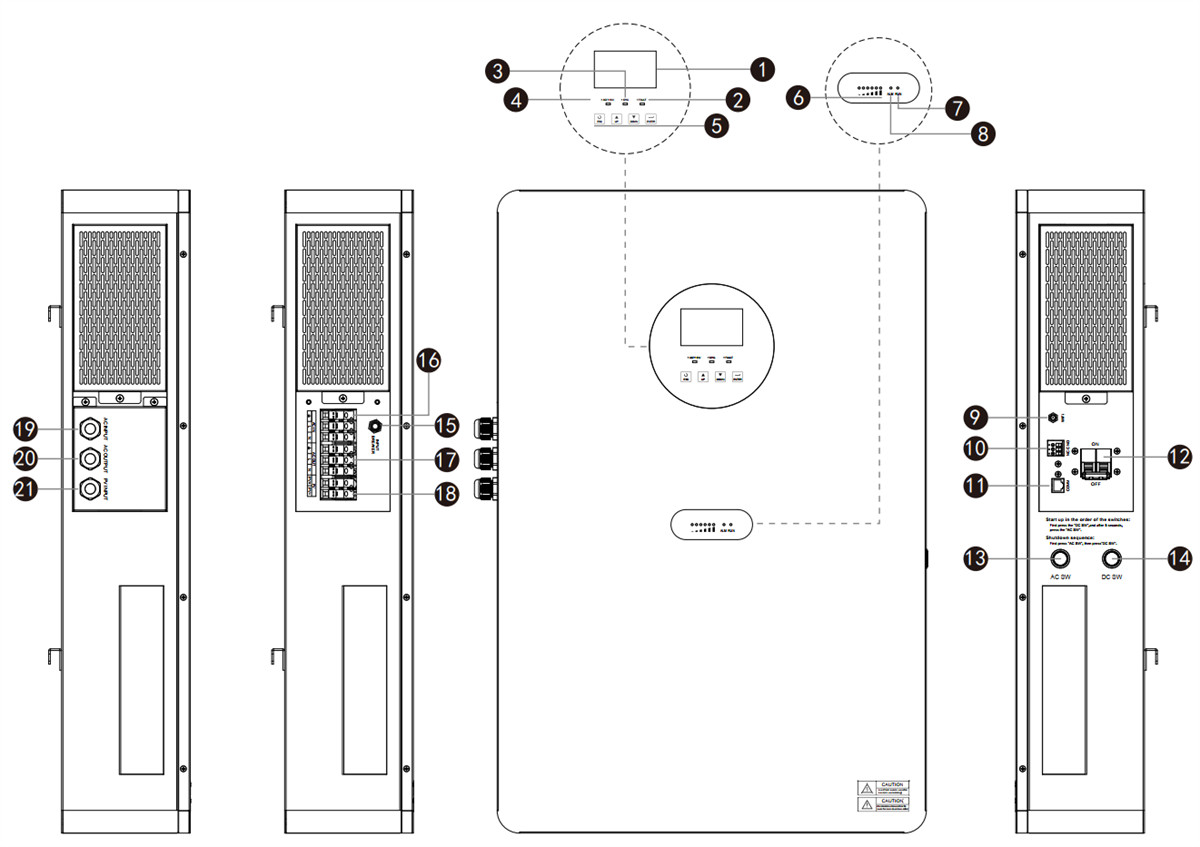

| 1.LCD display 2.Faultindicator 3.Charging indicator 4.Status indicator 5.Function buttons 11.COM communication port 12.AC Input breaker 13.BMS power switch 14.Inverter power switch 15.AC Output breaker |
6.Lithium battery capacity 7.Lithium battery working 8.Lithium battery failure 9.WiFi port 10.Dry contact 16.AC Input 17.AC Output 18.PV Input 19.AC Input Water proof joint 20.AC Output Water proof joint 21.PV Input Water proof join |

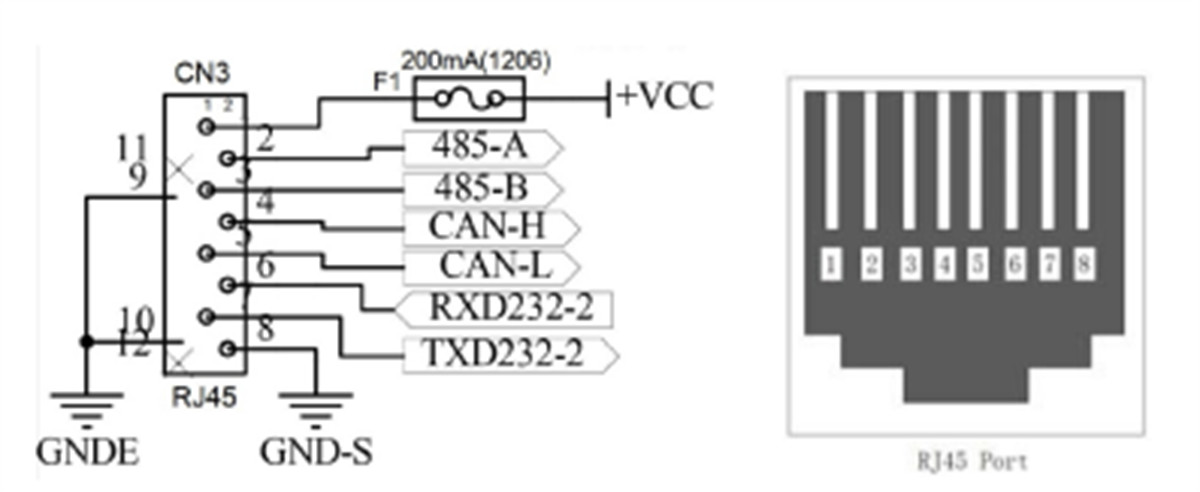

| Pin number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| definition | VCC | 485-A | 485-B | CAN-H | CAN-L | RXD | TXD | GND |
| RS232 | 6:RXD , 7:TXD, 8:GND |
| RS485 | 2:485-A , 3:485-B |
| CAN | 4:CAN-H, 5:CAN-L |
| Item | Model | 2.56KWh+3KW | 5KWh+5KW |
| Battery Module | Voltage | 25.6V | 51.2V |
| Battery capacity | 100Ah | ||
| Charge voltage | 29V | 58V | |
| Discharge cut-off voltage | 20V | 42V | |
| Charge current | 50A | ||
| Max charge current | 120A | 100A | |
| Discharge current | 120A | 100A | |
| Max discharge current | 150A | 100A | |
| Max peak current | 100A | 200A | |
| Communication method | RS485/CAN | ||
| Hybrid Inverter | Power | 3KW | 5KW |
| Output Voltage | 230VAC | ||
| Frequency | 50Hz/60Hz | ||
| input power (PV) | 3KW | 5KW | |
| Input voltage range (PV) | 30-400VDC | 120~430VDC | |
| Communication connect port | / | WiFi (optiona)) | |
| Parameter | Protection Degree | IP21 | |
| Material/Colour | Metal/White | ||
| Size | 450*150*600mm | 500*170*720mm | |
| Weight | 29Kg | 56Kg | |
| Temperature | Charge:0ºC-50ºC Discharge;-15ºC-60ºC | ||
