In today’s energy systems, pure sine wave inverters are vital for providing high-quality AC power from DC sources like solar panels or batteries. As the need for flexible and reliable power systems grows—especially in off-grid or hybrid setups—running multiple inverters together becomes more important. However, coordinating these inverters to work in sync poses technical challenges. This article will show you the basics of pure sine wave inverters, discusses why parallel operation is complex, and reviews strategies to ensure stable and efficient multi-inverter systems.

Basics of Pure Sine Wave Inverters

Features of Pure Sine Wave Output

Pure sine wave inverters produce a waveform that mirrors the smooth, sinusoidal shape of grid power. This output is essential for sensitive devices, medical equipment, and motors or compressors. Unlike modified or square waveforms, which may cause electrical noise or harm components, a pure sine wave ensures devices perform well and last longer.

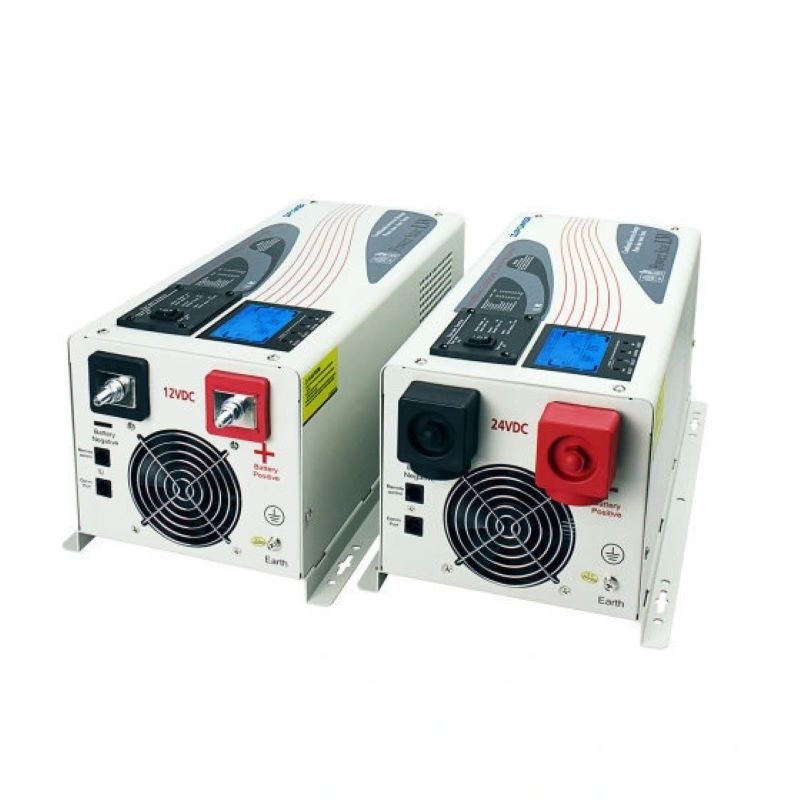

The PW series inverter is a single-phase pure sine wave inverter with a power of 8kw, 10kw, 12kw. It is suitable for all kinds of home appliances, office equipment, solar power systems, and other equipment using single-phase power.

Main Components and How They Work

A typical pure sine wave inverter has a DC-DC converter to boost input voltage and an H-bridge or full-bridge stage to create AC output. Advanced algorithms adjust pulse-width signals to produce a clean sine wave. Some models include MPPT solar charge controllers to improve energy capture from solar panels.

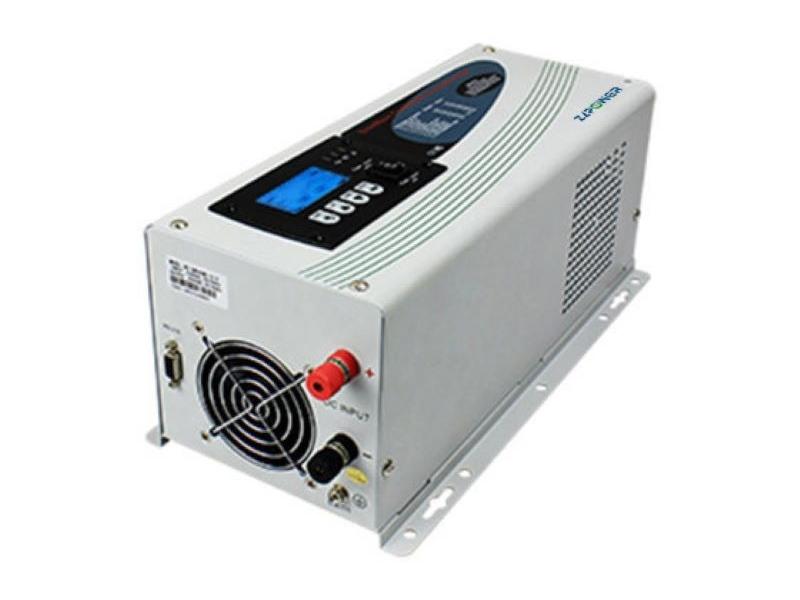

PVG is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank.

Benefits Compared to Modified or Square Wave Inverters

Pure sine wave inverters work with all AC devices, reduce harmonic distortion, operate quietly in audio/video systems, and perform better with motors. These advantages make them essential for professional solar setups and backup power systems.

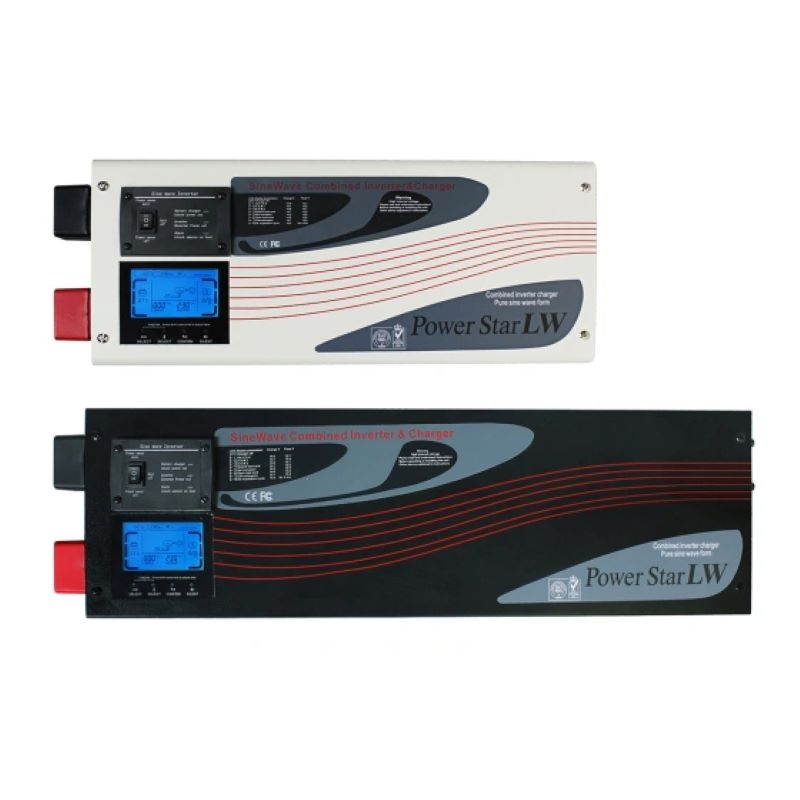

The GW Series Pure Sine Wave Inverter Charger is suitable for any home appliance such as home theater, DVD player, and power tools.

The Idea of Parallel Operation in Inverter Systems

Why Use Inverters in Parallel

Linking multiple pure sine wave inverters together increases system capacity beyond a single unit’s limit. It also allows adding more units as power needs grow.

Load Sharing and Backup Considerations

Parallel setups share the load among units, easing stress on each component and extending system life. Plus, having backups ensures the system keeps running if one unit fails—crucial for critical uses like hospitals or data centers.

Types of Parallel System Designs

Multi-inverter systems can use centralized or decentralized designs. Centralized systems have a main controller managing all units. Decentralized systems spread control across units using methods like droop control or PLL synchronization.

Synchronization Needs in Multi-Inverter Systems

Voltage Matching Requirements

For parallel operation to work, each inverter must output the same RMS voltage within tight limits (usually ±1%). Voltage differences can cause unwanted currents, lowering efficiency or damaging equipment.

Frequency Matching Needs

All units must run at the same frequency, typically within ±0.1 Hz. Frequency mismatches create beat frequencies that make the system unstable.

Phase Alignment Importance

Phase alignment ensures voltage peaks happen at the same time across all outputs. Misaligned phases cause interference, harming waveform quality and increasing distortion.

Ways to Achieve Synchronization Between Inverters

Master-Slave Setup

Role of the Master Unit

In this setup, one inverter acts as the main clock, setting reference signals for voltage, frequency, and phase. Other units (slaves) follow this signal to stay in sync.

How Slave Units Respond

Slave units adjust their oscillators based on the master’s signal, using phase-locking circuits or digital processing methods.

Droop Control Approach

Balancing Load with Frequency and Voltage Droop

Droop control allows decentralized synchronization. Each inverter’s output frequency or voltage shifts slightly based on its load. Units with heavier loads “droop” more, balancing current flow naturally without direct communication.

Challenges and Fixes

Droop control is simple and scalable but needs careful tuning to stay stable under changing loads. Combining droop with communication-based adjustments often improves accuracy.

Phase-Locked Loop (PLL) Methods

How PLL Works in Synchronization

A PLL circuit compares an inverter’s output phase to a reference signal (from another inverter or the grid). It adjusts the inverter’s oscillator to keep phases aligned.

Use in Digital Control Systems

Modern DSPs use software-based PLLs for precise and flexible synchronization, ideal for high-performance inverter arrays.

Its cutting-edge digital control technology of DSP (Digital Signal Processor) can greatly improve the product performance and system reliability.

As energy systems become more modular and reliable, synchronizing multiple pure sine wave inverters is both necessary and challenging. Achieving smooth coordination demands careful attention to matching voltage, locking frequencies, and aligning phases. Choosing the right synchronization method—such as master-slave setups, droop control, or PLL techniques—is key.

For reliable solutions, ZLPOWER offers a wide range of pure sine wave inverter products with advanced digital controls, including DSPs and smart communication interfaces like RS232/SNMP/dry contacts. ZLPOWER members are committed to delivering high-quality products and excellent service, making them a great choice for building scalable multi-inverter systems for homes, hospitals, and industrial complexes.

FAQ

Q: Why connect several inverters together?

A: Linking inverters in parallel boosts your total power output. It goes beyond what one unit can handle. You can also add more inverters later if your needs grow. Plus, it gives you backup. If one inverter stops working, the system keeps running. This backup is crucial for really important places. Think hospitals or data centers.

Q: What‘s tough about running inverters this way?

A: The biggest headaches come from syncing them up. They must produce the same voltage, the same frequency, and match their timing perfectly. If they don‘t line up, bad things can happen. You might get stray currents flowing where they shouldn‘t. The system could become unstable. Equipment might even get damaged.

Q: What does "synchronization" mean for parallel inverters?

A: Synchronization means getting all the inverters perfectly matched. They need the same voltage level, the same frequency, and their power waves need to line up exactly. That way, they work together smoothly. It prevents them from fighting each other. This keeps the power stable and reliable. It also avoids wasting energy or breaking things.
