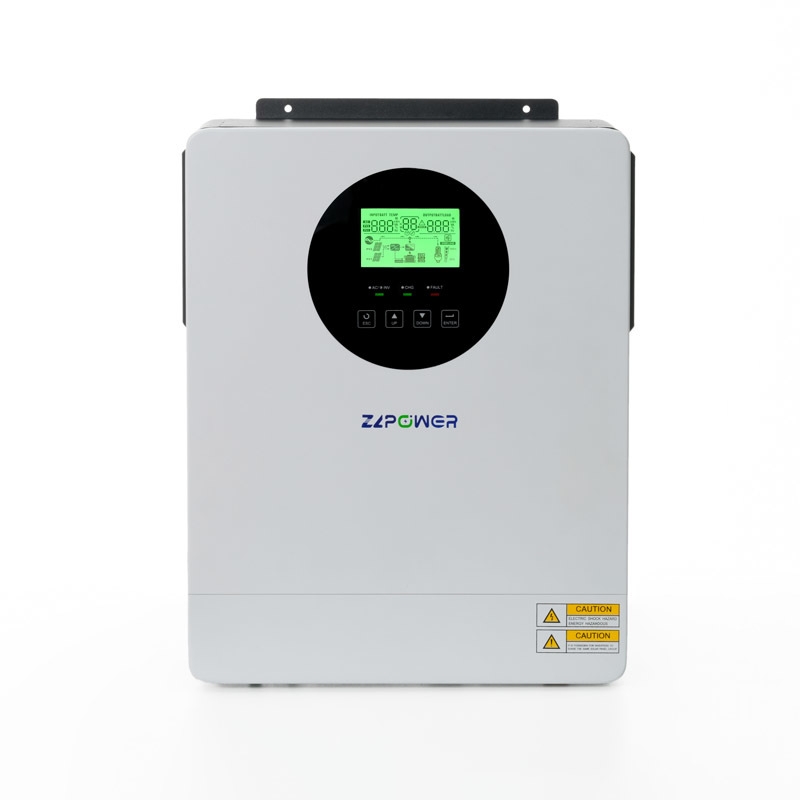

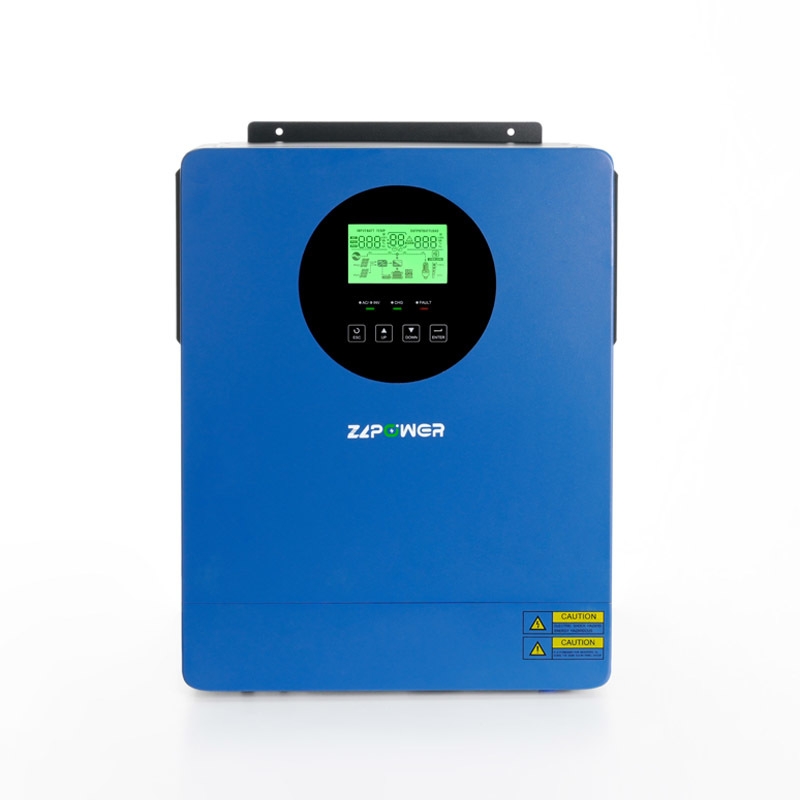

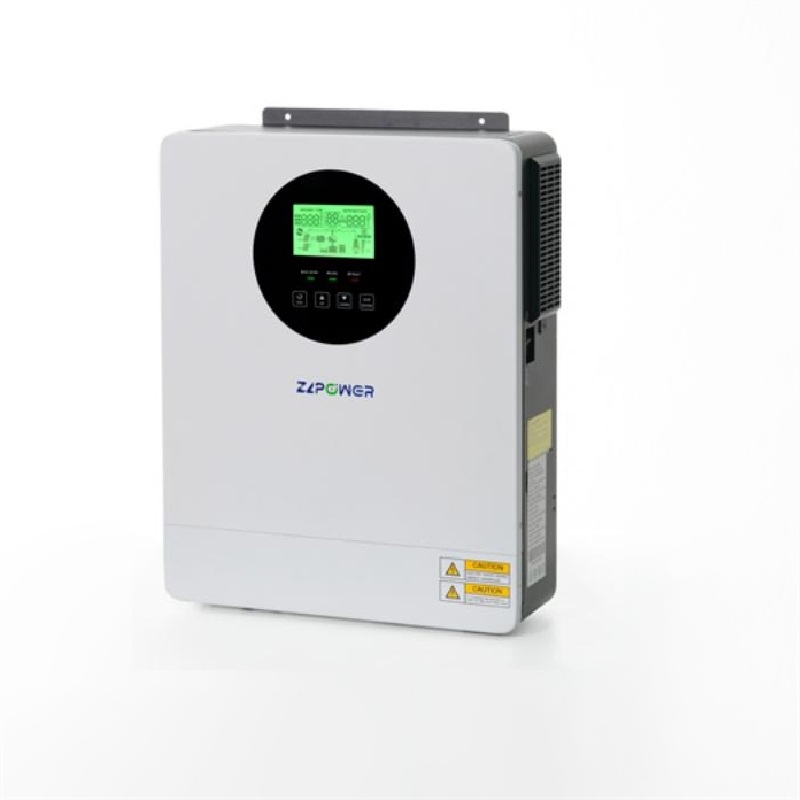

This hybrid solar inverter model PVG is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. Its comprehensive LCD display offers user-configurable and easy-accessible button operation.Battery independency design enhances this inverter to operate without battery connected.
1.Operation without battery
2.Pure power factor 1.0
3.High PV input voltage range
4.Battery independent design
5.Built-in 100A MPPT solar charger
6.Battery equalization function to optimize battery
7.Performance and extend lifecycle
8.Built-in anti-dusk kit for harsh environment
|
Inverter MODEL |
PVG 3500-24 |
PVG 5200-48 |
PVG 5500-48 |
|
Rated Power |
3500VA/3500W |
5200VA/5200W |
5500VA/5500W |
|
INPUT |
|||
|
Voltage |
230VAC |
||
|
Selectable Voltage Range |
170- 280VAC (For Personal Computers) |
||
|
90- 280VAC (For Home Appliances) |
|||
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
||
|
OUTPUT |
|||
|
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
||
|
Surge Power |
7000VA |
10400VA |
11000VA |
|
Efficiency(Peak) |
90%~93% |
||
|
Transfer Time |
10ms (For Personal Computers) |
||
|
20ms (For Home Appliances) |
|||
|
Waveform |
Pure sine wave |
||
|
Battery Voltage |
24VDC |
48VDC |
48VDC |
|
Floating Charge Voltage |
27VDC |
54VDC |
54VDC |
|
Overcharge protection |
33VDC |
63VDC |
63VDC |
|
Maximum PV Array Open Circuit Voltage |
500VDC |
500VDC |
500VDC |
|
Maximum PV Array Power |
4000W |
5500W |
5500W |
|
MPPT Operating Voltage Range |
120~450VDC |
120~450VDC |
120~450VDC |
|
Maximum Solar Charge Current |
100A |
100A |
100A |
|
Maximum AC Charge Current |
60A |
80 A |
80 A |
|
Maximum Charge Current |
100A |
100A |
100A |
|
Dimension, L×W×H(mm) |
425x320x115 |
|
|
|
Net Weight(kg) |
9.5 |
10.3 |
10.5 |
|
Communication Interface |
RS232 |
||
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
||
|
Operating Temperature |
-10°C to 50°C |
||
|
Storage Temperature |
-15°C to 60°C |
||
